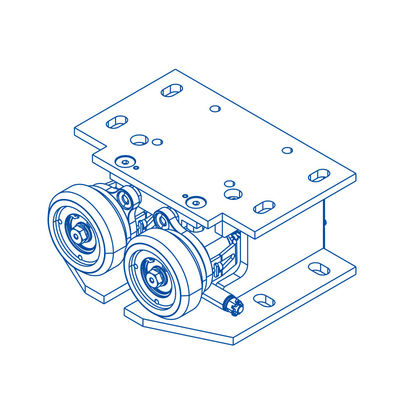

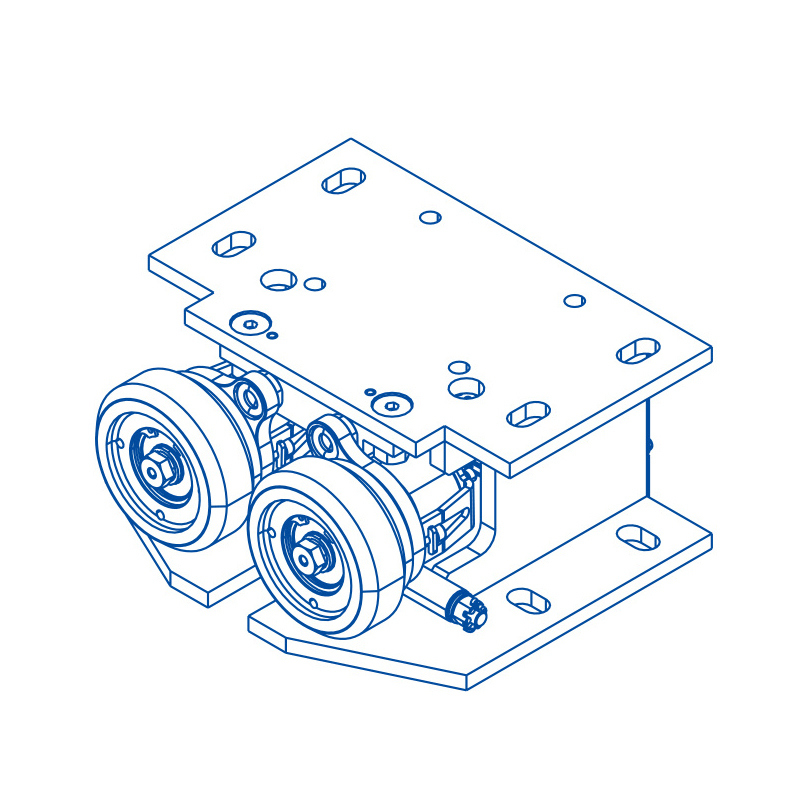

Diameter Of Roller 90 Roller Clamp Elevator Spares Rated Speed ≤6m/S

Diameter Of Roller 90 Roller Clamp Elevator Spares Rated Speed ≤6m/S
Diameter Of Roller 90 Roller Clamp Elevator Spares Rated Speed ≤6m/S

Büyük resim :  Diameter Of Roller 90 Roller Clamp Elevator Spares Rated Speed ≤6m/S

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: SUNNY
Sertifika: CE,ISO9001
Model numarası: SN-RBD
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 adet
Fiyat: $50~100
Ambalaj bilgileri: Karton Kutuda
Teslim süresi: 7 ~ 15 gün
Ödeme koşulları: L/C, T/T, Western Union
Yetenek temini: 5000 Adet/Ay

Diameter Of Roller 90 Roller Clamp Elevator Spares Rated Speed ≤6m/S

Açıklama
İsim: Makaralı Kelepçe Nominal Hız: ≤6m/s
Silindir çapı: 90 Kılavuz rayların genişliği: 9/10/15,88/16/19 mm
Modeli: Makaralı Kelepçe Kullanılmış: Asansör parçaları
Sertifika: Devreye alma raporu Garanti Zamanı: Bir yıl
Tip: Makaralı Kelepçe Ürün: Makaralı Kelepçe

Diameter Of Roller 90 Roller Clamp Elevator Spares Rated Speed ≤6m/S



Parameter Table



Model number

Type

RBD roller guide clamp
Rated speed(m/s) ≤6

Applicable elevator guide rail width

Rail width(mm)

9/10/15.88/16/19
Diameter of roller 90
Frictional Force(N) 150-250



Diameter Of Roller 90 Roller Clamp Elevator Spares Rated Speed ≤6m/S 0



Diameter Of Roller 90 Roller Clamp Elevator Spares Rated Speed ≤6m/S 1



Diameter Of Roller 90 Roller Clamp Elevator Spares Rated Speed ≤6m/S 2



Diameter Of Roller 90 Roller Clamp Elevator Spares Rated Speed ≤6m/S 3



Diameter Of Roller 90 Roller Clamp Elevator Spares Rated Speed ≤6m/S 4



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
