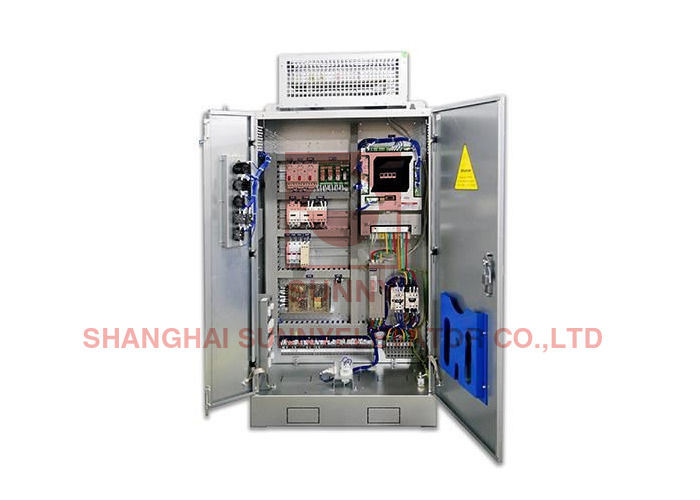

5.5-22kW Elevator Integrated Control Cabinet EN81-20 Compliant

5.5-22kW Elevator Integrated Control Cabinet EN81-20 Compliant
5.5-22kW Elevator Integrated Control Cabinet EN81-20 Compliant
5.5-22kW Elevator Integrated Control Cabinet EN81-20 Compliant 5.5-22kW Elevator Integrated Control Cabinet EN81-20 Compliant

Büyük resim :  5.5-22kW Elevator Integrated Control Cabinet EN81-20 Compliant

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: SUNNY
Sertifika: ISO9001
Model numarası: AS380KC64M
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 adet
Ambalaj bilgileri: Ahşap kutu
Teslim süresi: 7 İş Günü
Ödeme koşulları: Western Union, T/T, L/C, PayPal
Yetenek temini: 5000 Adet/Ay
İletişim

5.5-22kW Elevator Integrated Control Cabinet EN81-20 Compliant

Açıklama
İsim: Asansör Entegre Kontrol Cihazı Güç aralığı: 5,5 - 22 kW
Hız: ≤2,5m/sn Güvenlik standardı: EN81-20
Güç kaynağı: 3 fazlı, AC380~415V, 50/60Hz Toplu taşıma: Deniz taşımacılığı
Kullanım: Bay ve Bay Orijinal: Çin
Model: Asansör Entegre Kontrol Cihazı Tip: Asansör Entegre Kontrol Cihazı
Vurgulamak:

5.5-22kW elevator control cabinet

,

EN81-20 compliant elevator cabinet

,

integrated elevator control system

5.5 - 22kW Epsilon-iCC Series | Intelligent Integrated Elevator Control Cabinet
Main Features
  • Designed based on EN81-20 standard and CE compliant
  • UCMP with periodic self-monitoring of braking force
  • Door lock bypass device for hall or car door lock bypassing
  • Continuous monitoring of door lock circuit to prevent unexpected shorting
  • Secondary brake protection for enhanced safety and reliability
  • Communication-controlled pit inspection for easier maintenance
Technical Indicators
Power supply 3 phase, AC380~415V, 50/60Hz
Rated power 5.5 - 22kW
Rated speed ≤2.5m/s
Motor type Synchronous/Asynchronous
Motor Brake DC110V, ≤3A
Illumination AC220V
Standard EN81-20
Environment -10℃ to 45℃
Cabinet material Galvanized sheet
Control Method Single / Duplex / Group Control
Dimension(mm) 1000×580×300
Brake resistor cabinet dimension(mm) 420×255×117 to 420×255×255
Installation Ground mounted
Product Images
5.5-22kW Elevator Integrated Control Cabinet EN81-20 Compliant 0 5.5-22kW Elevator Integrated Control Cabinet EN81-20 Compliant 1 5.5-22kW Elevator Integrated Control Cabinet EN81-20 Compliant 2 5.5-22kW Elevator Integrated Control Cabinet EN81-20 Compliant 3
Frequently Asked Questions
Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration considers not only the wire rope and rated load, but also the size of the traction. The tensile strength exceeds the lift's weight, with a safety factor of at least four wire ropes to prevent simultaneous failure.
Is it dangerous during sudden power failure while the elevator is running?
The elevator will automatically stop using electrical and mechanical safety devices. In case of power failure, elevator brakes engage immediately. Power supply departments typically provide advance notice for planned outages.
Will users be hurt if doors close suddenly?
Our doors feature automatic reopening when touched during closing, with anti-pinch switches that prevent closure when obstructed. The closing force is carefully regulated for safety.
How does the elevator operate?
Elevators operate via counterweight wire ropes through traction drive, moving vertically along guide rails.
Is escalator installation complicated?
Our escalators feature integrated structures for precision and efficiency, designed to simplify installation and commissioning while maintaining full functionality.
Do you have any certifications?
Yes, we hold ISO9001, CCC, and CE certifications for our products.
