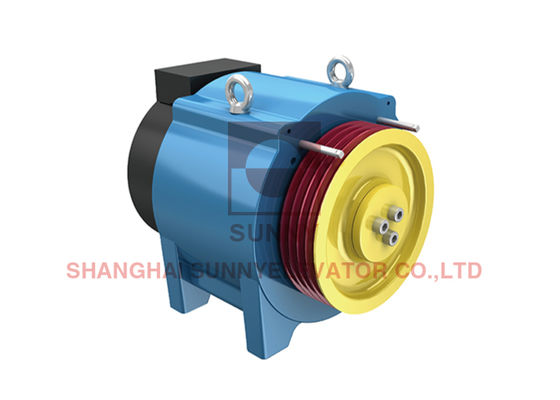

Gearless Elevator Machine 320-450kg 0.4-1.0m/s Residential Lift Drive

Gearless Elevator Machine 320-450kg 0.4-1.0m/s Residential Lift Drive
Gearless Elevator Machine 320-450kg 0.4-1.0m/s Residential Lift Drive
Gearless Elevator Machine 320-450kg 0.4-1.0m/s Residential Lift Drive Gearless Elevator Machine 320-450kg 0.4-1.0m/s Residential Lift Drive

Büyük resim :  Gearless Elevator Machine 320-450kg 0.4-1.0m/s Residential Lift Drive

Ürün ayrıntıları:
Place of Origin: China
Marka adı: SUNNY
Sertifika: CE,ISO9001
Model Number: SN-FRD21G
Ödeme & teslimat koşulları:
Minimum Order Quantity: 1Set
Fiyat: $500~1200
Packaging Details: Wooden box
Delivery Time: 7~15 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 5000pcs/month
İletişim

Gearless Elevator Machine 320-450kg 0.4-1.0m/s Residential Lift Drive

Açıklama
Name: Gearless Elevator Machine Load: 320~450kg
Speed: 0.4-1.0m/s Traction ratio: 2:1
Static load: 2500kg Brake: DC110V,1.8A
Warranty time: 12 Months Application: elevator.lift
Model: Gearless Elevator Machine Type: Gearless Elevator Machine
Vurgulamak:

Gearless elevator machine 320-450kg

,

Residential lift drive 0.4-1.0m/s

,

Gearless traction machine with warranty

Residential Gearless Traction Machine – Quiet & Compact Home Elevator Drive System
Product Specifications
Attribute Value
Name Gearless Elevator Machine
Load 320~450kg
Speed 0.4-1.0m/s
Traction ratio 2:1
Static load 2500kg
Brake DC110V,1.8A
Warranty time 12 Months
Application elevator.lift
Model Gearless Elevator Machine
Type Gearless Elevator Machine
Technical Details
Supply voltage: AC380V/220V
Traction ratio: 2:1
Protection grade: IP41
Elevator speed: 0.4-1.0m/s
Rated capacity: 320~450kg
Brake: DC110V,1.8A
The maximum axial load: 2500kg
Duty type: S5-40%
Product Images
Gearless Elevator Machine 320-450kg 0.4-1.0m/s Residential Lift Drive 0 Gearless Elevator Machine 320-450kg 0.4-1.0m/s Residential Lift Drive 1 Gearless Elevator Machine 320-450kg 0.4-1.0m/s Residential Lift Drive 2 Gearless Elevator Machine 320-450kg 0.4-1.0m/s Residential Lift Drive 3 Gearless Elevator Machine 320-450kg 0.4-1.0m/s Residential Lift Drive 4
Frequently Asked Questions
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration considers not only wire rope and rated load, but also the size of the traction. The tensile strength exceeds the lift weight with a safety factor of four or more wire ropes, preventing simultaneous breakage.
2. Is it dangerous during sudden power failure while the elevator is running?
The elevator will automatically stop using electrical and mechanical safety devices. In case of power failure, elevator brakes engage immediately. Power supply departments typically provide advance notice for planned outages.
3. Will users be hurt if doors close suddenly?
Our doors feature automatic reopening when touched during closing, with anti-pinch switches that prevent closure when obstruction is detected. Closing force is carefully calibrated for safety.
4. How does the elevator operate?
Elevators move via counterweight wire rope through traction drive, moving vertically along guide rails.
5. Is escalator installation complicated?
Our escalators feature integrated structures for precision and efficiency, designed for straightforward commissioning and maintenance.
6. Do you have any certifications?
Yes, we hold ISO9001, CCC, and CE Certificates for our products.
